Wastewater screening becomes more difficult when a treatment plant receives fluctuating flows and a mixture of fibrous, organic, and suspended solids. A screen may capture debris effectively at first, but accumulated material can gradually restrict water passage, increase upstream water levels, and require frequent cleaning. For facilities operating continuously, maintaining an open screening surface is just as important as achieving the required separation.

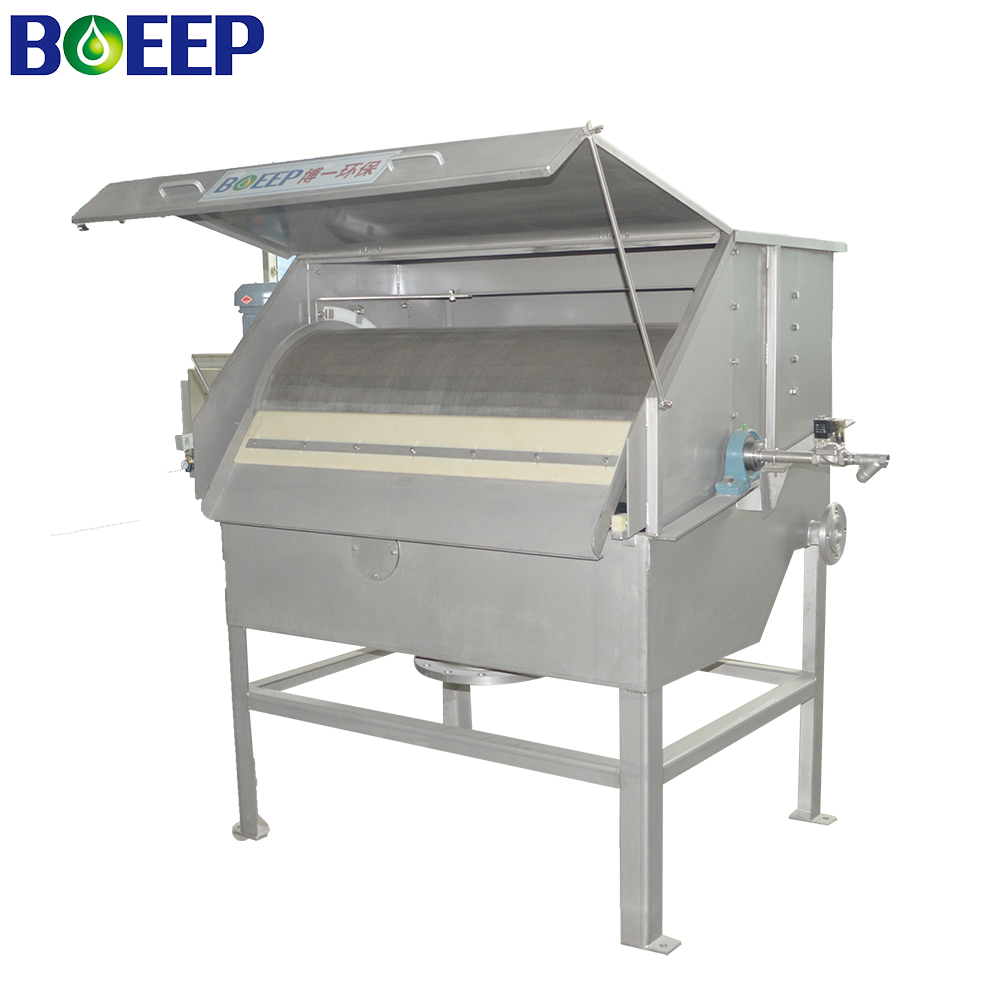

A self-cleaning rotary drum screen addresses this challenge through a rotating screening surface and an automatic backwashing system. BOEEP's externally fed ZL series combines wedge wire filtration with continuous solids removal, helping municipal and industrial wastewater facilities maintain stable pretreatment operations with less manual screen cleaning.
The screening surface determines how effectively a drum separates solids while allowing wastewater to pass through. Conventional mesh and perforated screens can provide useful filtration, but their performance depends on opening geometry, hydraulic loading, and the characteristics of the incoming solids.
A wedge wire drum screen uses profiled metal wires to form precisely defined slots. The wire geometry provides a screening surface with favorable hydraulic characteristics, allowing water to pass through the openings while retaining solids larger than the effective screen gap.
This structure is particularly valuable where fine screening and continuous operation are required. Instead of relying only on a large open mesh, the screen can provide controlled slot sizes suited to the wastewater and downstream treatment requirements.
BOEEP's externally fed rotary drum screen for wastewater treatment uses a wedge wire drum surface with available screen gaps ranging from 0.25 to 2.5 mm. This allows buyers to consider different filtration requirements within the product series.
A smaller opening can retain finer material, but it also changes the hydraulic conditions and may increase the need for effective surface cleaning. Choosing the screen gap therefore requires understanding both the wastewater characteristics and the desired pretreatment result.
One of the main advantages of an automatic backwash drum screen is its ability to remove accumulated solids during operation. As wastewater flows across the externally fed rotating drum, retained solids move with the screen surface toward the discharge area. A flushing system helps dislodge material that remains attached to the wedge wire.
In BOEEP's ZL design, the backwashing system includes a flushing pipe and nozzles that direct water toward the drum surface. This cleaning action helps keep the screen slots open, reducing the accumulation that would otherwise restrict filtration.
Automatic backwashing is particularly useful in wastewater containing fibrous materials, food-processing residues, or mixed suspended solids. These materials can accumulate unevenly, and a screen that relies entirely on periodic manual cleaning may experience interruptions between cleaning cycles.
The benefit is not that maintenance disappears. Nozzles, the flushing water supply, drum surface, and drive components still require inspection. However, integrating cleaning into normal operation can reduce the frequency of manual interventions and support more consistent screening performance.
For municipal and industrial facilities evaluating drum filter equipment, this combination of filtration and backwashing is an important distinction between a basic screening device and equipment designed for continuous service.
An externally fed rotary drum screen receives wastewater on the outside of the rotating screening surface. Water passes through the screen openings, while larger solids remain on the surface and are carried toward the collection area as the drum rotates.
The arrangement provides a continuous screening path without requiring the entire screen to be removed for routine solids discharge. This is particularly beneficial for pretreatment lines where flow continues throughout the day.
The ZL series also incorporates a cover, drum assembly, water tank, transmission device, flushing system, and solids discharge arrangement. Together, these components support an integrated screening process rather than a stand-alone filter surface.
For example, food-processing wastewater may contain suspended product fragments, while municipal influent can carry mixed debris and fibrous solids. In both cases, consistent solids removal helps protect downstream pumps, piping, and treatment equipment from unnecessary loading.
The ZL design can be considered alongside other rotary drum screening equipment when planning a new pretreatment installation or upgrading an existing screening stage.
BOEEP's ZL610×610 provides a concrete reference for evaluating the screening capacity and mechanical configuration of the series.
Parameter | ZL610×610 |
|---|---|
Drum diameter | 610 mm |
Drum length | 610 mm |
Screen gap range | 0.25–2.5 mm |
Listed treatment capacity | 33–170 m³/h |
Motor power | 0.55 kW |
Drum assembly material | SS304 |
Motor protection | IP55 |
Power supply | 380 V / 50 Hz / 3-phase |
Operating arrangement | Continuous or intermittent |
The available screen gaps and hydraulic capacity range give engineers flexibility when evaluating different pretreatment requirements. The actual combination must be matched to the expected flow, solids concentration, and intended screen opening.
The stainless steel drum construction is another practical consideration for wastewater environments. BOEEP also provides manual and automatic control functions, with provisions for central control room integration.
Rather than focusing only on the maximum listed flow, a project specification should describe the normal operating flow, peak flow, retained solids, and the way the screen will discharge collected material. These details determine how the equipment fits into the overall pretreatment system.
A rotary drum screen for wastewater can serve several industries, but the reasons for installing one are not always the same.
In food and beverage processing, screening can intercept product fragments and other suspended organic material before biological or further physical treatment. Continuous discharge is useful when wastewater characteristics change with production schedules.
Slaughterhouse and livestock wastewater may contain fibrous and organic solids that place considerable demands on screening equipment. A wedge wire surface with automatic flushing can help maintain screen availability, provided the selected gap and loading conditions suit the waste stream.
Municipal wastewater facilities commonly need compact screening systems that can operate alongside pumps and other pretreatment equipment. Where space is limited, the arrangement of the inlet, screened-water outlet, and solids discharge becomes an important installation consideration.
For larger treatment projects, BOEEP's custom wastewater equipment services can support discussions about equipment configuration, site layout, and integration with existing treatment processes.
An equipment quotation is more useful when it reflects actual wastewater conditions instead of relying on a nominal capacity alone. A project engineer should provide the normal and peak wastewater flow, the type and approximate quantity of suspended solids, and the target screening gap.
Installation details also matter. Available space, inlet and outlet elevations, electrical requirements, backwash water availability, and the preferred solids collection method can influence the final arrangement.
For plants planning continuous operation, it is useful to describe operating hours and the expected variation in incoming flow. This helps establish whether one screening unit can serve the application or whether the plant layout requires additional operational flexibility.
BOEEP can use these project details to discuss an appropriate ZL configuration and its connection to the wider wastewater pretreatment system.
A rotary drum screen must do more than separate solids during its first operating hour. In demanding wastewater applications, keeping the screening surface open and removing captured material consistently are central to reliable pretreatment.
BOEEP's ZL series self-cleaning rotary drum screen brings together wedge wire filtration, automatic backwashing, and an externally fed structure designed for continuous operation. If you're planning a wastewater screening upgrade, contact BOEEP with your flow range, solids characteristics, and required screen gap. Our team can help identify a suitable configuration for your treatment line.
Wedge wire provides controlled slot openings and favorable hydraulic characteristics. It allows wastewater to pass through the screening surface while retaining solids according to the selected gap size.
No. Automatic backwashing helps remove accumulated solids during operation, but flushing nozzles, the drum surface, drive components, and discharge areas still need routine inspection.
The listed screen gap range is 0.25–2.5 mm. The appropriate opening depends on the wastewater flow, solids characteristics, and required filtration performance.
Yes. BOEEP's ZL610×610 is specified for continuous or intermittent operation. Its rotating drum and automatic flushing system support ongoing screening and solids removal.
