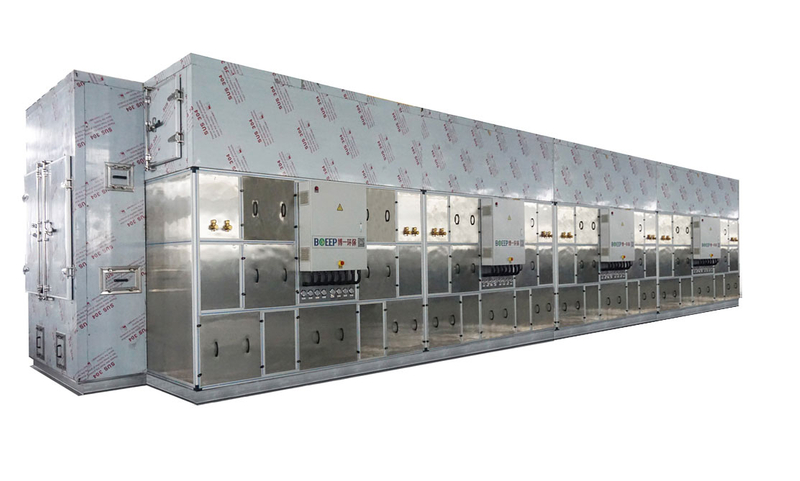

Sludge low temperature belt dryer

The low-temperature sludge drying equipment developed by BOE environmental Protection can directly dry sewage or sludge with a moisture content of less than 83% to dry sludge with a moisture content of 10%-30%. The reduction can be as high as 90%, and the effective sterilization can be as high as 90%. Low energy consumption, no pollution, widely used in municipal sludge and industrial sludge (printing and dyeing, papermaking, electroplating, chemical industry, leather, pharmacy, etc.) for drying reduction. Dry sludge with 10%-30% moisture content can be gasified later , Mixed burning, composting, or building materials and other harmless resource disposal.

Quantity:
  • BOE2400FL
  • BOEEP
  • BOE

Product Introduction of Sludge low temperature dryer


The low-temperature sludge drying equipment developed by BOE environmental Protection can directly dry sewage or sludge with a moisture content of less than 83% to dry sludge with a moisture content of 10%-30%. The reduction can be as high as 90%, and the effective sterilization can be as high as 90%. Low energy consumption, no pollution, widely used in municipal sludge and industrial sludge (printing and dyeing, papermaking, electroplating, chemical industry, leather, pharmacy, etc.) for drying reduction. Dry sludge with 10%-30% moisture content can be gasified later , Mixed burning, composting, or building materials and other harmless resource disposal.


渲染图一

Structure of Sludge low temperature dryer


Wide range of applications

1.It can be widely used in the drying treatment of various types of sludge in municipal administration, printing and dyeing, papermaking, electroplating, chemical industry, leather, etc.;

2.The daily dehumidification and water removal capacity of a single device ranges from 200 kg to 50 tons, and all models can meet;

3.Electric energy can be used directly, or energy such as steam and waste heat can be used;

4.It can be centralized treatment or decentralized treatment to meet the requirements of sludge disposal policies in different regions;

5. It is not affected by the external environment temperature (low temperature in winter) and humidity (humidity in summer), suitable for use in various regions;

Safe and harmless

1. Fully-enclosed low-temperature operation at 40-75, no nitrogen filling operation required;

2. During the drying process, the oxygen content is less than 12%, the dust concentration is less than 60g/m3, the particle temperature is less than 70, and there is no danger of dust and explosion;

3. The sludge is statically spread, and there is no mechanical electrostatic friction with the contact surface;

4. There is no "sticky phase" stage of the urban sludge drying process (about 60%);

5. The dry material is in granular form and there is no danger of dust;

6. The discharging temperature is low (<50), no cooling is needed, and it is stored.

High efficiency reduction

1. It can directly dry the sludge with a moisture content of 83% to 10% without disposing in stages;

2. There is no loss of organic components in the drying process, and the dry material has a high calorific value, which is suitable for later resource utilization;

3. The reduction can be as high as 80%, which can save a lot of later transportation costs; 4. Using Pasteur (pasteurization) sterilization method-low temperature heat sterilization, the drying temperature is above 70 for 90 minutes to 120 minutes, and the effective sterilization is as high as 90%;

Skills design

1. Adopt heat pump heat recovery technology, closed drying mode without any waste heat emission;

2. 80% wet mud is dried to 60% per ton, and the comprehensive power consumption is 125kw.h;

3. 80% wet mud is dried to 10% per ton, and the comprehensive power consumption is 200kw.h;

4. 4 kg of water can be removed per 1 kilowatt-hour of electricity (the dehumidification performance ratio is 1:4kg.H2o/kw.h);

Environmentally friendly and odorless

1. The entire equipment system adopts a closed design, no odor overflows, and no complicated deodorizing device is required;

2. Using low temperature drying process, the amount of H2S and NH3 precipitation is greatly reduced;

3. Condensate (sludge moisture) is easy to dispose of and can be discharged directly;

4. Adapt to sewage plants in urban areas, villages and scenic spots;

Economic savings

1. It occupies a small area, with an average treatment area of about 4m2 per ton of wet mud;

2. It can be installed in the basement to save land area;

3. No complicated civil structures and infrastructure, saving civil construction costs;

4. The equipment is simple to install, and the installation and debugging cycle is short, saving time and cost;

Smart operation

1. The equipment runs fully automatically, saving a lot of labor costs;

2. "PLC+touch screen" intelligent control can realize remote centralized control;

3. The moisture content of the discharge material can be adjusted arbitrarily (10%-50%);

Stable and durable

1. The use of corrosion-resistant materials such as stainless steel, and the heat exchanger with electroplating anti-corrosion treatment, have a long service life;

 2. There is no mechanical wear during operation, and the service life is more than 15 years;

3. No vulnerable and consumable parts, easy to use and manage;




Working Principle of Sludge low temperature dryer


Low temperature drying principle

The low-temperature sludge drying equipment independently developed by BOE Environmental Protection uses the principle of low-temperature heat pump dehumidification and uses convection hot air drying to reduce the amount of wet sludge on the mesh belt. The whole set is the same as a fully enclosed type. Design, dry hot air without heat loss.

干化原理

Dehumidification heat pump principle


The refrigeration system is used to cool and dehumidify the humid air from the drying room, and at the same time recover the latent heat of moisture condensation to reheat the dry air. It is a combination of dehumidification (dehumidification and drying) and heat pump (energy recovery), and is the recycling of energy in the drying process.

热泵原理



Technical Specification of Sludge low temperature dryer

带式干化外形结构


Model Data


85GGXMW%GS_NDHXM8OH


Object Site
